AlGaN optimization for growth of
cladding layers

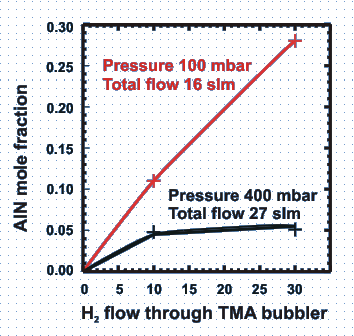

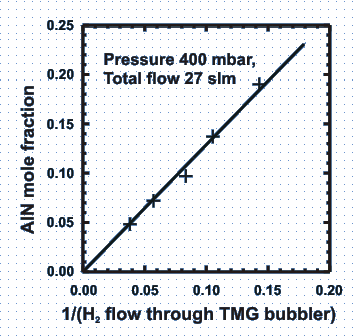

Up to 25% (40%) AlN mole fraction was realized in
AlGaN epilayers under the optimized growth conditions at
400 mbar (200 mbar) reactor pressure for AIX2000HT system
